Golyóscsap BB, karos
(mm)
(mm)
(mm)
(mm)
(mm)
|

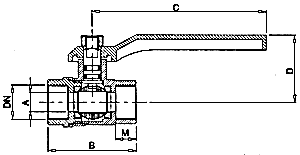

Art.1050 Golyóscsap BB, karos | ||||||
| Technikai adatok | |||||||
| DN | A (mm) |
B (mm) |
C (mm) |
D (mm) |
M (mm) | ||
| 3/8" | 9 | 40 | 80 | 30 | 9.5 | ||
| 1/2" | 15 | 50.5 | 88 | 40 | 12 | ||
| 3/4" | 19 | 56 | 88 | 40 | 13 | ||
| 1" | 25 | 66 | 88 | 46 | 14 | ||
| 1 1/4" | 30 | 76 | 130 | 65 | 14 | ||
| 1 1/2" | 40 | 86 | 130 | 70 | 16.5 | ||
| 2" | 50 | 100 | 160 | 80 | 17 | ||
| 2 1/2" | 60 | 130 | 210 | 110 | 24 | ||
| 3" | 75 | 155 | 210 | 120 | 26.5 | ||
| 4" | 90 | 180 | 210 | 130 | 28 | ||
