Golyóscsap BB, T karos
(mm)
(mm)
(mm)
(mm)
(mm)
|

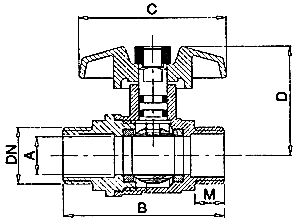

Art.1050 T Golyóscsap BB, T karos | ||||||
| Technikai adatok | |||||||
| DN | A (mm) |
B (mm) |
C (mm) |
D (mm) |
M (mm) | ||
| 3/8" | 9 | 40 | 54 | 31 | 9.5 | ||
| 1/2" | 15 | 50.5 | 54 | 37.5 | 12 | ||
| 3/4" | 19 | 56 | 54 | 40 | 13 | ||
| 1" | 25 | 66 | 54 | 46.5 | 14 | ||
