Golyóscsap KB, karos
(mm)
(mm)
(mm)
(mm)
(mm)
|
Art.1100 Golyóscsap KB, karos | ||||||

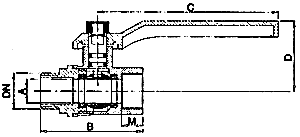

| Technikai adatok | |||||||
| DN | A (mm) |
B (mm) |
C (mm) |
D (mm) |
M (mm) | ||
| 3/8" | 9 | 47 | 80 | 30 | 9.5 | ||
| 1/2" | 15 | 56 | 88 | 40 | 12 | ||
| 3/4" | 19 | 63 | 88 | 40 | 13 | ||
| 1" | 25 | 71 | 88 | 46 | 14 | ||
| 1 1/4" | 30 | 87 | 130 | 65 | 14 | ||
| 1 1/2" | 40 | 98 | 130 | 70 | 16.5 | ||
| 2" | 50 | 114 | 160 | 80 | 17 | ||
