Golyóscsap KB, T karos
(mm)
(mm)
(mm)
(mm)
(mm)
|

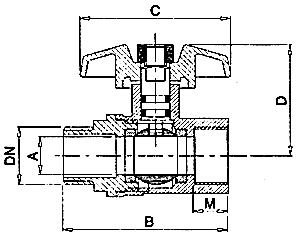

Art.1100 T Golyóscsap KB, T karos | ||||||
| Technikai adatok | |||||||
| DN | A (mm) |
B (mm) |
C (mm) |
D (mm) |
M (mm) | ||
| 3/8" | 9 | 47 | 54 | 30 | 9.5 | ||
| 1/2" | 15 | 56 | 54 | 40 | 11 | ||
| 3/4" | 19 | 63 | 54 | 40 | 14 | ||
| 1" | 25 | 71 | 54 | 46 | 15 | ||
