Golyóscsap KK, karos
(mm)
(mm)
(mm)
(mm)
(mm)
|
Art.1250 Golyóscsap KK, karos | ||||||

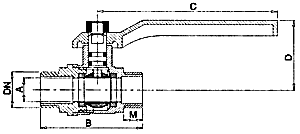

| Technikai adatok | |||||||
| DN | A (mm) |
B (mm) |
C (mm) |
D (mm) |
M (mm) | ||
| 3/8" | 12 | 52 | 80 | 31 | 10 | ||
| 1/2" | 15 | 58 | 88 | 40 | 11 | ||
| 3/4" | 19 | 66 | 88 | 40 | 13 | ||
| 1" | 25 | 76 | 88 | 46 | 13 | ||
| 1 1/4" | 30 | 96 | 130 | 65 | 15 | ||
| 1 1/2" | 40 | 110 | 130 | 70 | 17 | ||
