Lábszelep (réz kosaras)
(mm)
(mm)
(mm)
(mm)
(mm)
|

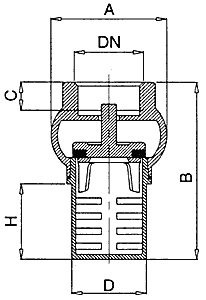

Art.7200 Lábszelep (réz kosaras) | ||||||
| Technikai adatok | |||||||
| DN | A (mm) |
B (mm) |
C (mm) |
D (mm) |
M (mm) | ||
| 1/2" | 39 | 60 | 10 | 24 | 25 | ||
| 3/4" | 45 | 70 | 10 | 30 | 30 | ||
| 1" | 51 | 79 | 12 | 33 | 33 | ||
| 1 1/4" | 61 | 97 | 14.5 | 42 | 42 | ||
| 1 1/2" | 67 | 101 | 15 | 45 | 45 | ||
| 2" | 80 | 117 | 16.5 | 49 | 49 | ||
